Gk200 Geological Survey Drilling Rig Product Details:
| Place of Origin: | China |
|---|---|
| Brand Name: | SKWIN |
| Certification: | ISO9001 |
| Model Number: | GK-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Delivery Time: | Within 7-12 days |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Type: | Small Water Well Drilling Rig | Power Type: | Diesel Or Motor |
|---|---|---|---|
| Voltage: | 220v | Dimension(L*W*H): | 1730*860*1360 |
| Usage: | Water Well,railways, Core | Color: | Customer Required |
| Highlight: | rock core drilling machine, geological drilling machine | ||
GK200 Mobile Geological Survey Mining Drilling Machine Diamond Core Drilling Machine
Product Specifications
| Type | Small water well drilling rig |
|---|---|
| Power Type | Diesel or motor |
| Voltage | 220V |
| Dimension (L×W×H) | 1730×860×1360 mm |
| Usage | Water well, railways, core drilling |
| Color | Customer specified |
Product Overview

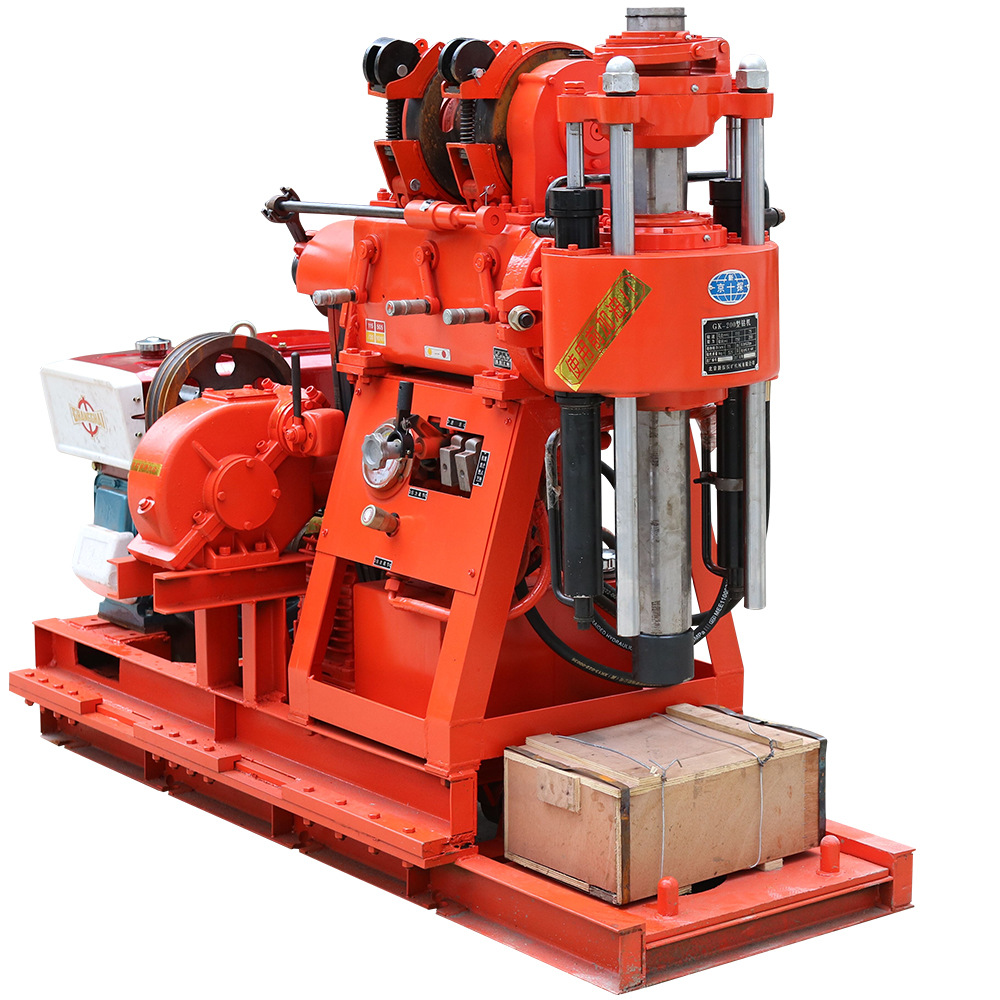

The GK-200 Core Survey Drilling Rig is an enhanced version of the standard 200 drilling rig, designed as a portable drilling solution. This model features an innovative drilling rig shift slide mechanism that enables rapid tool changes, significantly improving operational efficiency while reducing labor intensity.
Technical Parameters
| Drilling Rig | |
|---|---|
| Drilling diameter (mm) | 75, 91, 110, 130, 150, 300 |
| Drilling depth (m) | 200, 150, 100, 70, 50, 30 |
| Drill pipe diameter (mm) | 42, 50 |
| Drilling angle (°) | 90~75 |
| Equipment size (L×B×H) | 1730×860×1360 mm |
| Rig weight (except engine) | 700 kg |
Applications
- Geological survey and exploration
- Geophysical exploration
- Road and building foundation investigation
- Blasting holes and grouting holes
- Compatible with alloy, diamond, and composite bits for various strata
- Capable of drilling 2~9 grade sandy clay and weathered bedrock
Key Features
- Oil pressure automatic feed structure with mechanical transmission enhances drilling efficiency
- Ball card holding structure replaces chuck for safer, more reliable operation
- Equipped with hole bottom pressure gauge for real-time monitoring
- Compact design with drill, water pump, and diesel engine on single base
- Lightweight and modular for easy transportation
Operating Conditions
- Maximum altitude: 1000M
- Operating temperature range: -10°C to 45°C
- Maximum humidity: 96% at 25°C
