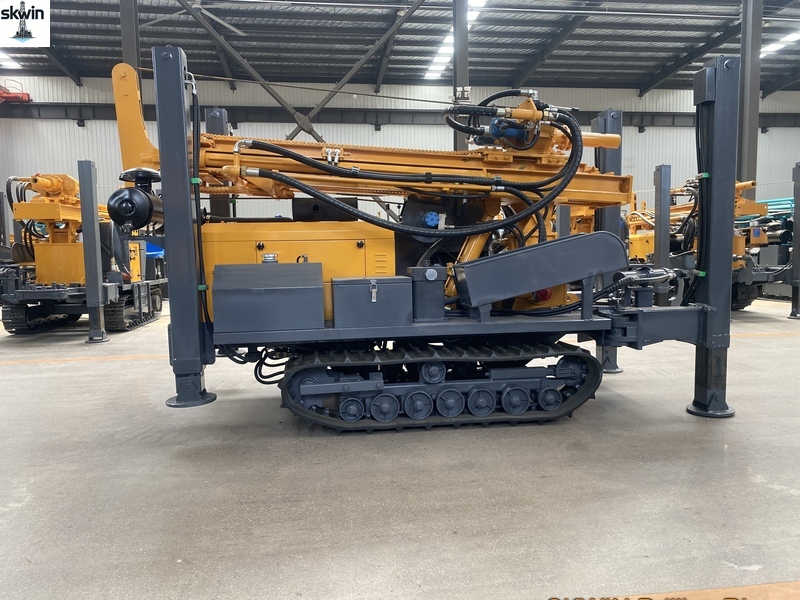

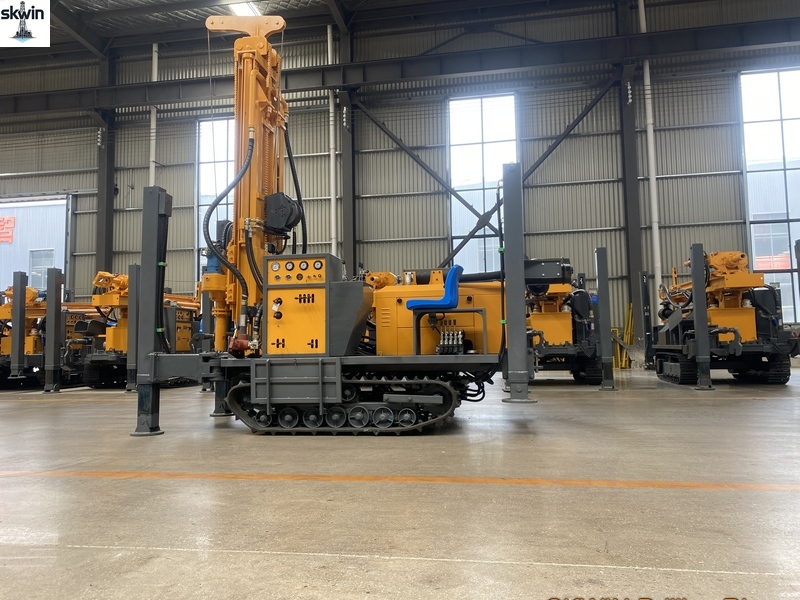

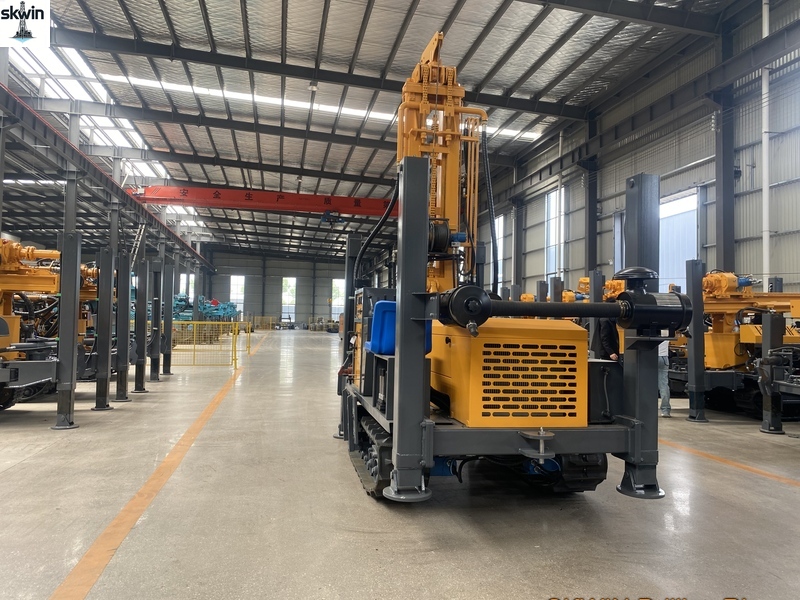

SKW1000 Water Well Drilling Rig
- Hole diameter :140-400mm
- Drilling depth: 1000mm
FY1000 Series: The Ultra-Deep Exploration Master
Best For: 1000m deep water exploration, geothermal wells, and large-diameter mining projects.
The FY1000 Water Well Drilling Rig is our flagship model, representing the pinnacle of drilling technology. Engineered for the most demanding projects, it combines massive lifting force with high-end components to reach depths of 1000 meters.


Technical Highlights of FY1000:
Enhanced Protection: Integrated baffle on the main arm protects the oil cylinder from debris, ensuring long-term reliability in harsh conditions.
Cummins Turbocharged Power: Driven by a 194KW Cummins 6-cylinder engine, providing relentless power and an extended service life.
Patented Compound Boom: Unique compound boom design with double oil cylinder lift, significantly strengthening the tower for ultra-deep operations.
Premium Hydraulic System: Features three independent oil pumps (including Italy-imported options) and a specialized foam pump/winch system for multifunctional use.
Parallel Transmission: Innovative design ensures efficient power distribution and a unique hydraulic layout that simplifies maintenance and reduces downtime.
| item | value |
| Applicable Industries | Manufacturing Plant, Farms, Construction works , Energy & Mining |
| Showroom Location | Viet Nam, Philippines, India, Mexico, Morocco, South Korea, Chile, South Africa |
| Condition | New |
| Type | water well drilling rig |
| Power Type | Diesel |
| Brand Name | Feida |
| Usage | Water Well |
| Dimension(L*W*H) | 6300*2300*2950mm |
| Weight | 13000KG |
| Warranty | 1 Year |
| Marketing Type | New Product 2025 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pressure vessel, Pump, Engine, Gearbox |
| Key Selling Points | Competitive Price |
| Drilling Depth | Max.1000m |
| Color | Yellow (custom-made) |
| KW | 194 (Cummins engine) |
| Application | Water Wells Soil Rock Drill Rig |
| work system | Water gas dual system |
