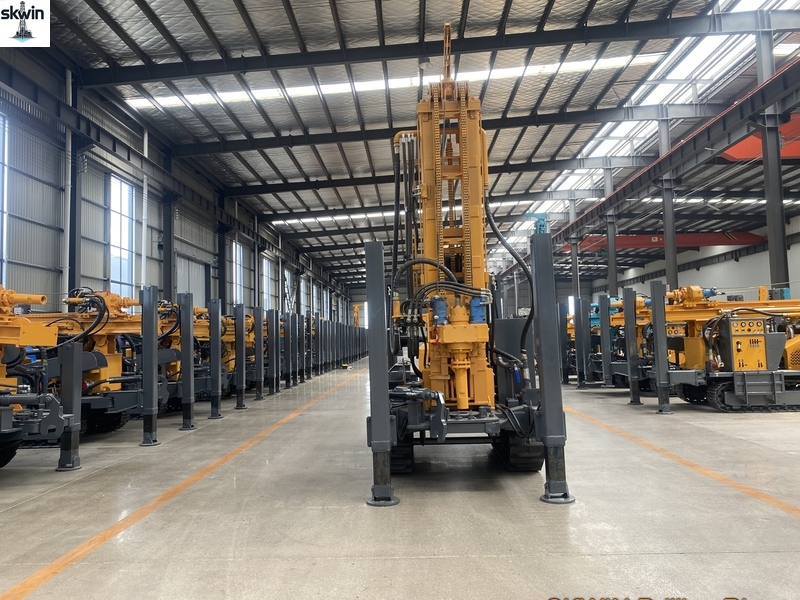

SKW180 Water Well Drilling Rig
High Drilling Efficiency – Top drive head design for faster penetration.
Strong & Durable Power – Equipped with reliable engine and robust structure.
Adaptable to Complex Terrain – Stable crawler chassis for all working conditions.
Versatile Drilling Methods – Support DTH, mud drilling and water well drilling.
Fully Equipped System – Includes mud pump, air compressor and hydraulic outriggers.
The SKW180 water well drilling rig is a high-efficiency, multi-functional drilling machine designed for water well exploration, geological survey, and civil engineering projects. It features a stable structure, strong power, and easy operation, making it suitable for various geological conditions including soil, clay, sand, and weathered rock.

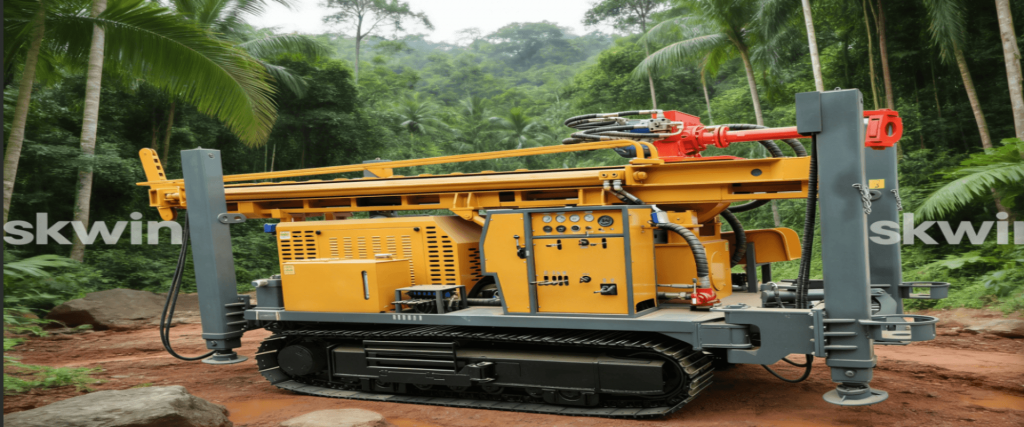

Crawler type drilling rig
| Type | SKW180 Water Well Drilling Rig | ||
| Specification (English) | Value | Specification (English) | Value |
| The weight (T) | 4.5 | Drill pipe diameter (mm) | Φ76, Φ89 |
| The hole diameter (mm) | 140-254 | Drill pipe length (m) | 1.5, 2.0, 3.0 |
| Drill depth (m) | 180 | Rig lifting force (T) | 12 |
| One-time advance length (m) | 3.3 | Rapid rise speed (m/min) | 20 |
| Walking speed (km/h) | 2.5 | Fast-feeding speed (m/min) | 40 |
| Climbing angle (Max.) | 30 | Width of loading (m) | 2.4 |
| Equipped capacitor (kW) | 55 | Hoisting force of winch (T) | — |
| Working air pressure (MPA) | 1.7-2.5 | Swing torque (N.m) | 3200-4600 |
| Air consumption (m3/min) | 17-31 | Dimensions (mm) | 3950*1630*2250 |
| Swing speed (rpm) | 45-70 | The penetration efficiency (m/h) | 10-35 |
| High leg stroke (m) | 1.4 | The engine brand | Quanchai |
