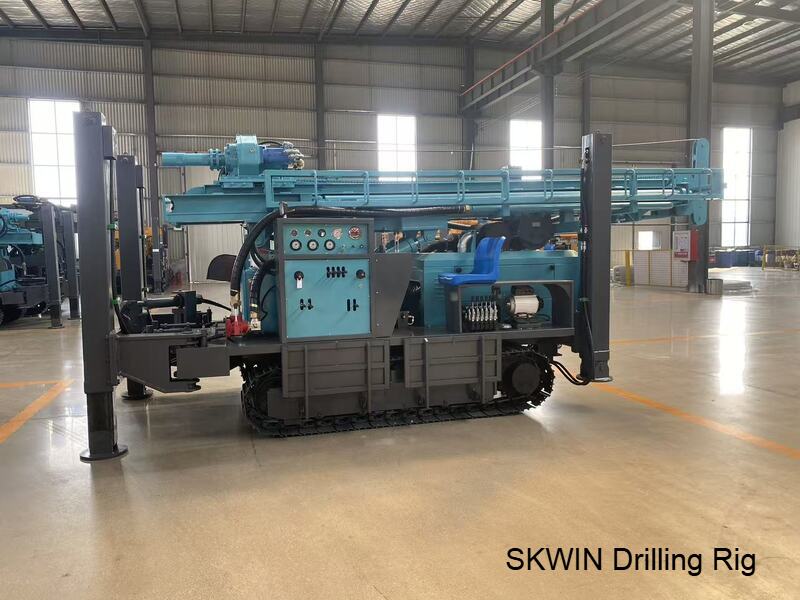

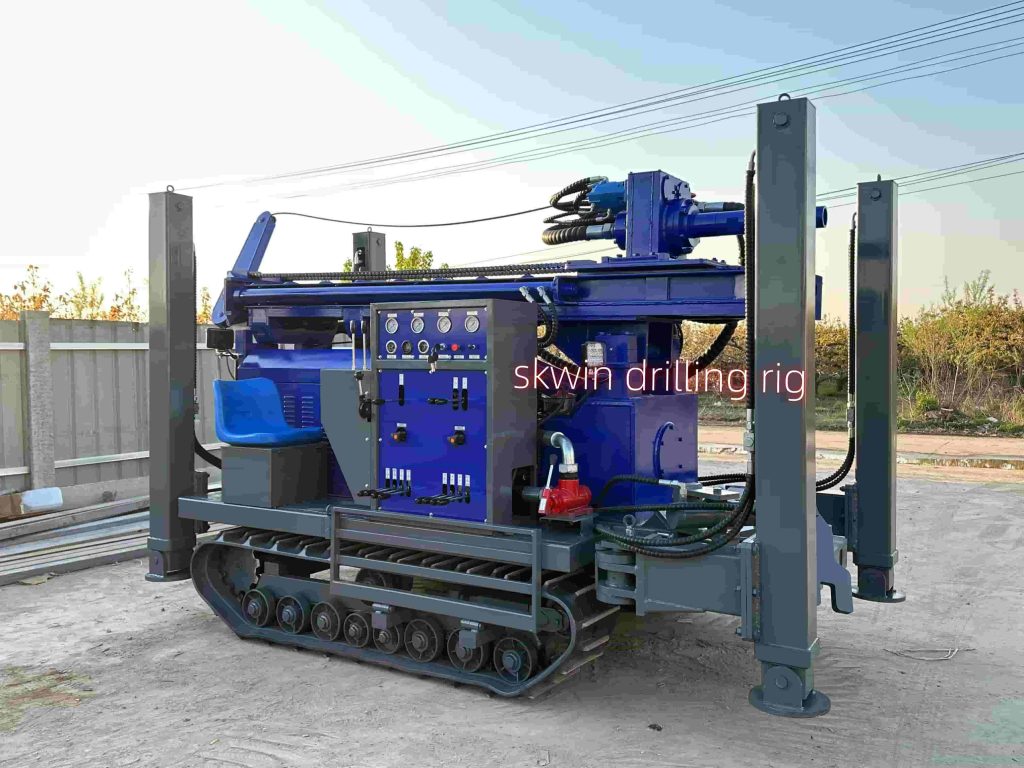

SKW200 Water Drilling Rig
- Hole diameter :140-254mm
- Drilling depth: 200mm
The 200m Water Well Drilling Rig is a professional-grade, highly efficient drilling machine specifically designed for water well exploration and small to medium-scale geotechnical investigation.
Equipped with a high-torque diesel engine and an advanced hydraulic system, this rig delivers exceptional power and stability. It is capable of drilling to a depth of 200 meters, making it ideal for residential water supply, agricultural irrigation, and regional water conservancy projects.
| Technical Parameters of SKW200 Crawler type water well drilling rig | |
| Type | SKW200 |
| Parameter | Value |
| The weight (T) | 4.7 |
| Drill pipe diameter (mm) | Φ76 Φ89 |
| The hole diameter (mm) | 140-254 |
| Drill pipe length (m) | 1.5 / 2.0 / 3.0 |
| Drill depth (m) | 200 |
| Rig lifting force (T) | 13 |
| One-time advance length (m) | 3.3 |
| Rapid rise speed (m/min) | 30 |
| Walking speed (km/h) | 2.5 |
| Fast feeding speed (m/min) | 60 |
| Gradeability (Max.) | 30 |
| Width of loading (m) | 2.6 |
| Equipped capacitor (kw) | 58 |
| Hoisting force of winch (T) | 1.5 |
| Working air pressure (MPA) | 1.7-2.5 |
| Swing torque (N.m) | 3400-4700 |
| Air consumption (m³/min) | 17-31 |
| Dimensions (mm) | 3950×1750×2250 |
| Swing speed (rpm) | 45-70 |
| The penetration efficiency (m/h) | 10-35 |
| High leg stroke (m) | 1.4 |
| The engine brand | Yuchai |
