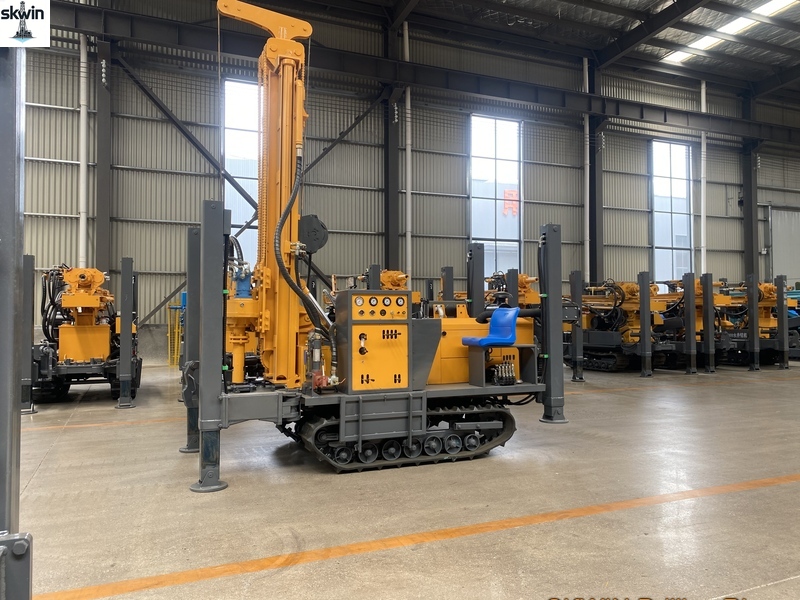

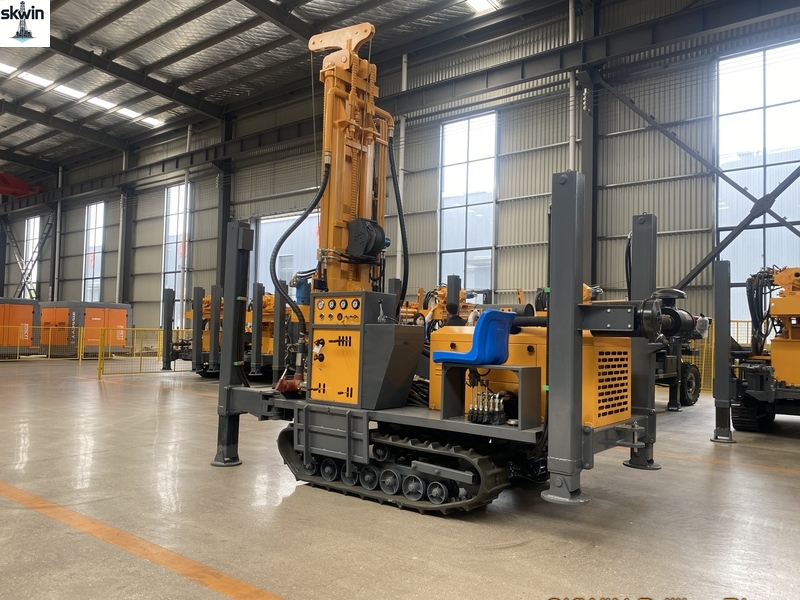

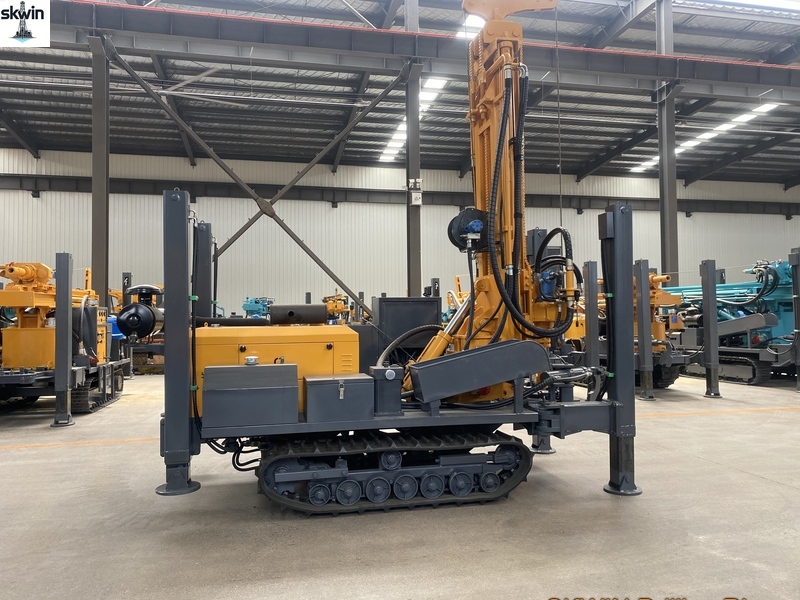

SKW260 Water Drilling Rig
- Hole diameter :140-305mm
- Drilling depth: 260mm
260m Series: The Versatile Multi-Purpose Rig
Best For: Residential water wells, agricultural irrigation, and geothermal heat pump holes.
The 260m hydraulic water well drilling rig is designed for contractors who require a balance of power and portability. Its compact crawler chassis allows for easy maneuvering in tight spaces or rural terrains.
Drilling Depth: Up to 260 meters.
Superior Mobility: Robust rubber or steel crawler tracks for high-climbing ability.
Dual-System Compatibility: Seamlessly switch between mud pump drilling and DTH (Down-the-Hole) air drilling for rock layers.
Cost-Efficient: Low fuel consumption and simplified maintenance for maximum ROI.
| ype | Skw 260 Crawler Type Water Well Drilling Rig | ||
| The weight (T) | 5.7 | Drill pipe diameter (mm) | Φ76, Φ89 |
| The hole diameter (mm) | 140-305 | Drill pipe length (m) | 1.5m 2.0m 3.0m |
| Drilling depth (m) | 260 | Rig lifting force (T) | 15 |
| One-time advance length (m) | 3.3 | Rapid rise speed (m/min) | 24 |
| Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 40 |
| Climbing angles (Max.) | 30 | Width of loading (m) | 2.73 |
| Equipped capacitor (kw) | 76 | Hoisting force of winch (T) | 1.5 |
| Using air pressure (MPA) | 1.7-2.5 | Swing torque (N.m) | 4000-5300 |
| Air consumption (m3/min) | 17-31 | Dimension (mm) | 3900*1750*2250 |
| Swing speed (rpm) | 45-70 | The penetration efficiency (m/h) | 10-35 |
| High leg stroke (m) | 1.4 | The engine brand | Quanchai |
