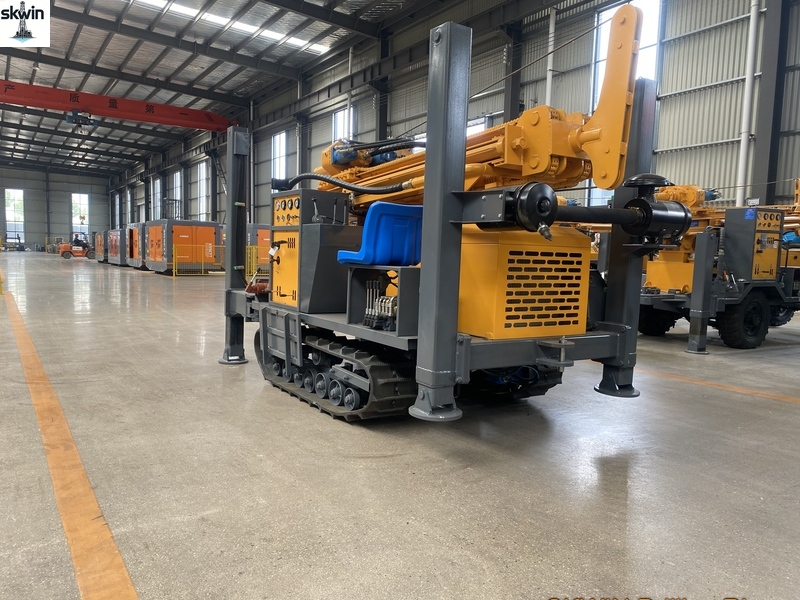

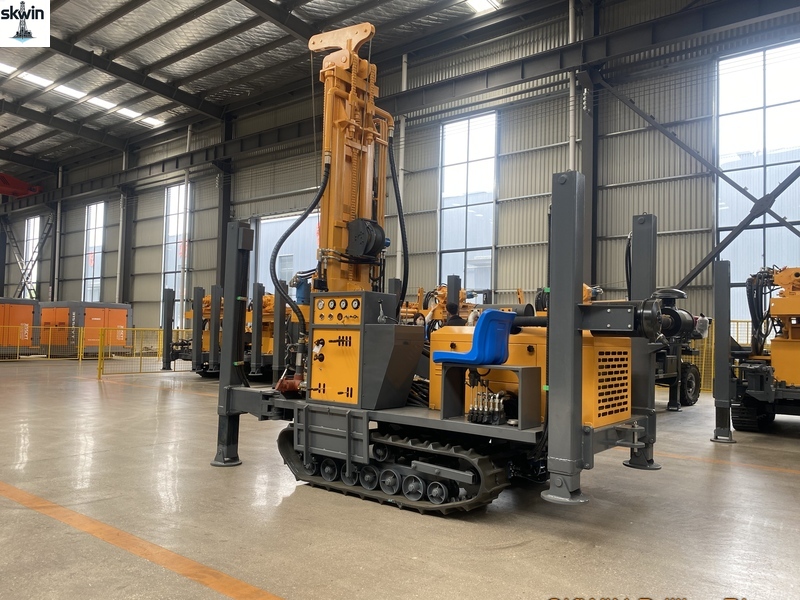

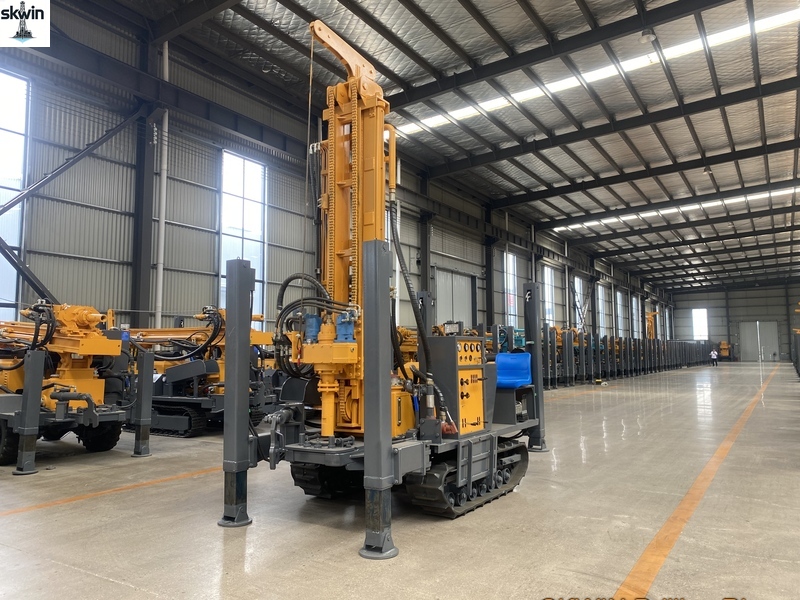

SKW600 Water Borehole Drilling Rig
- Hole diameter :140-400mm
- Drilling depth: 600mm
600m Series: The Industrial Workhorse
Best For: Large-scale irrigation, industrial water supply, and mineral exploration.
The 600m deep borehole drilling machine is a heavy-duty solution built for challenging environments. It features an upgraded hydraulic system and a higher lifting capacity to handle larger pipe diameters and deeper strata.
Enhanced Torque: High-torque rotary head allows for drilling through hard rock and gravel layers with ease.
Reliable Power: Equipped with high-output diesel engines (Cummins or equivalent) to ensure stable performance during long-duration operations.
Reinforced Mast: Heavy-duty telescopic mast design provides exceptional stability during deep-hole lifting.
Advanced Control: Centralized hydraulic control panel for precise operation and safety.
Parameter for SKW600 Water Drilling Rig
| Power Type | Diesel |
| Dimension(L*W*H) | 6200*2200*2650mm |
| The Weight | 11500KG |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump, Engine |
| Key Selling Points | Competitive Price |
| Drilling Depth | Max.680m |
| Mobility | move by crawler |
| drill pipe diameter(mm) | 102mm 108mm 114mm |
| the hole diameter(mm) | 140-400mm |
| drill pipe length(M) | 1.5m 2.0m 3.0m 6.0m |
| one-time advance length(m) | 6.6m |
| walking speed(km/h) | 2.5km/h |
| equipped capacitor(kw) | cummins 153kw |
| using air pressure(MAP) | 1.7-3.5MAP |
| swing speed(rpm) | 45-140rpm |
| the penetration efficiency(m/h) | 15-35m/h |
